ATEX Connectors










CVB-EX series is derived from MIL-C-5015/VG95234 specifications and our RFCVBS connectors this series of rapid coupling reverse bayonet connector offers extreme versatility.

Used in the certain hazardous and potentially explosive environments, these connectors are used in Oil and Gas sector, mining and Power plant industries.

Features:

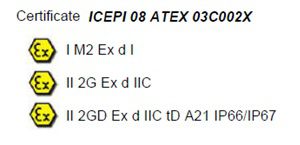

  • Certification: 94/9/EC ATEX directive

  • According to: EN 60079-0/-1 and EN 61241-0 / -1

  • Surface applications – Group II zones 1, 21, 2 and 22 (Gas and Dust)

  • Underground applications – Group I category M2

  • Ambient Temperature -40 °C/+135 °C

  • Cable and Panel mounting

  • Crimp and Solder contacts

  • Environmentally sealed versions available

  • Cadmium Free plating available

  • 500 minimum mating

  • IP66/IP67 protection degree
